Solar Tile Series
Customisable Patterns
Anti-Glare & High-transparency
High Durability
Customisable Solar Tile Series

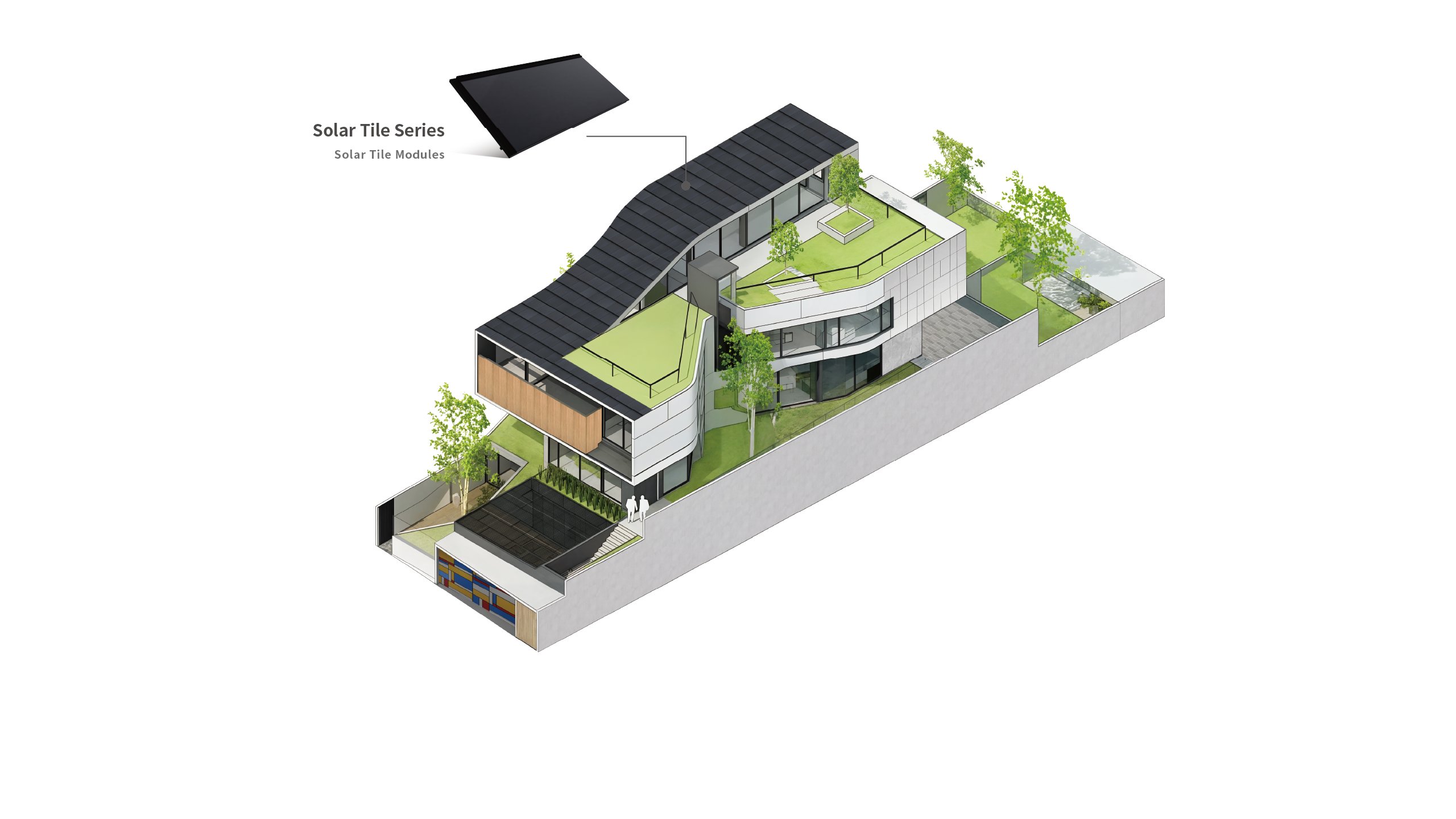

These solar tile photovoltaic modules are designed for pitched-roof PV systems and traditional-inspired architecture, offering fully customisable decorative patterns that complement both classic and contemporary aesthetics. The anti-glare, high-transparency surface minimises reflections and preserves clear visibility, while durable materials ensure reliable, long-term power generation—seamlessly combining architectural beauty with energy performance.
Tile Pattern Options
Blue-grey Flat Tile
Red Flat Tile
Blue-grey Curved Tile
Grey-yellow Tile
Specifications
General Information
Dimensions - 621 × 301.5 mm
Encapsulation Structure - 3.2T + 3.2 PVK + 3.2 T
Thickness - 29.5 mm
Junction Box Size - 65 × 45 × 13.5 mm
Weight - 5 kg
Electrical Parameters
Rated Power (Pm) - 17 ~ 24 W
Rated Voltage (Vm) - 52 ~ 68 V
Rated Current (Im) - 0.33 ~ 0.35 A
Connector Type - MC4 Connector
Safety & Reliability
Static Load - 5400 Pa
Fire Rating - Class B1
Wind Resistance - 1500 Pa
Hail Resistance - 55 mm
Ingress Protection - IP68
Note: Electrical performance varies slightly with different patterns.
