Architectural Color Series
Architectural Colors
Anti-Glare & High-Transparency
High-Durability
Customizable Color BIPV Modules

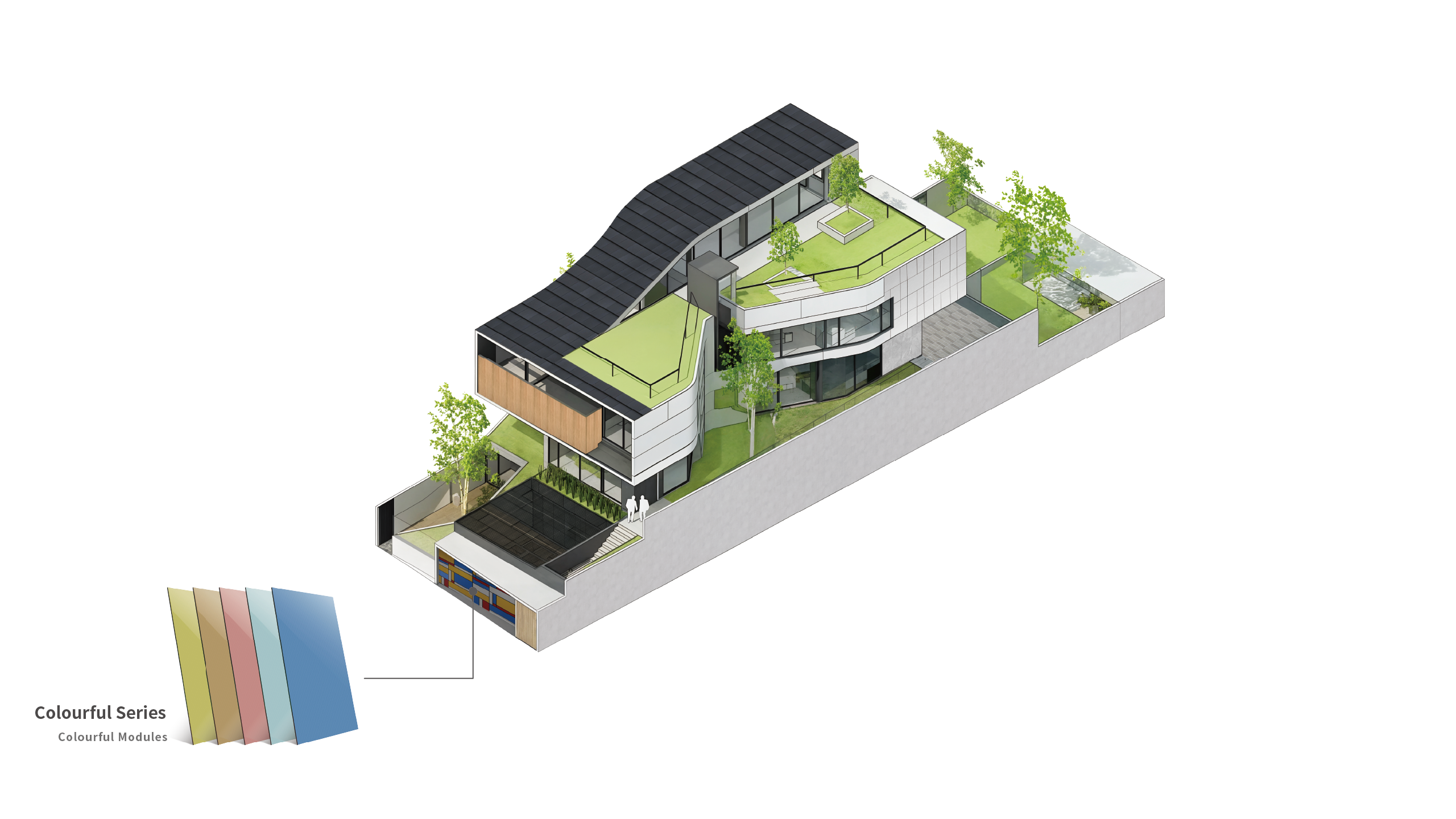

These architectural color photovoltaic modules offer full-spectrum color customization, allowing expressive building facades while delivering clean, sustainable energy. Their anti-glare, high-transparency surface minimizes reflections and preserves clear visibility, and the high-durability construction supports long-term, reliable power generation.
Color Options
Lime Yellow
Warm Brown
Icy Blue
Deep Ocean Blue
Peach Pink
Specifications
Model 1
Dimensions - 1200 x 1800 mm
Encapsulation Structure - 6T + 3.2 PVK + 6T
Thickness - 16.5 mm
Junction Box Size - 150 × 13.3 × 10.7 mm
Weight - 86.5 kg
Rated Power (Pm) - 172 ~ 206 W
Rated Voltage (Vm) - 174 ~ 204 V
Rated Current (Im) - 0.99 ~ 1.01 A
Connector Type - MC4 Connector
Static Load - 5400 Pa
Model 2
Dimensions - 1200 × 1800 mm
Encapsulation Structure - 8T + 3.2 PVK + 8T
Thickness - 20.5 mm
Junction Box Size - 150 × 13.3 × 10.7 mm
Weight - 144 kg
Rated Power (Pm) - 172 ~ 206 W
Rated Voltage (Vm) - 174 ~ 204 V
Rated Current (Im) - 0.99 ~ 1.01 A
Connector Type - MC4 Connector
Static Load - 5400 Pa
Note: Electrical performance varies slightly with different colours.
Need technical documents or a project quote?
Download product documents or send project requirements to our BIPV team for module selection, datasheets and quotation support.
