Semi-Transparent Series
Adjustable Transparency
Customisable Dimensions
Customisable Structures
Customisable Semi-Transparent Modules

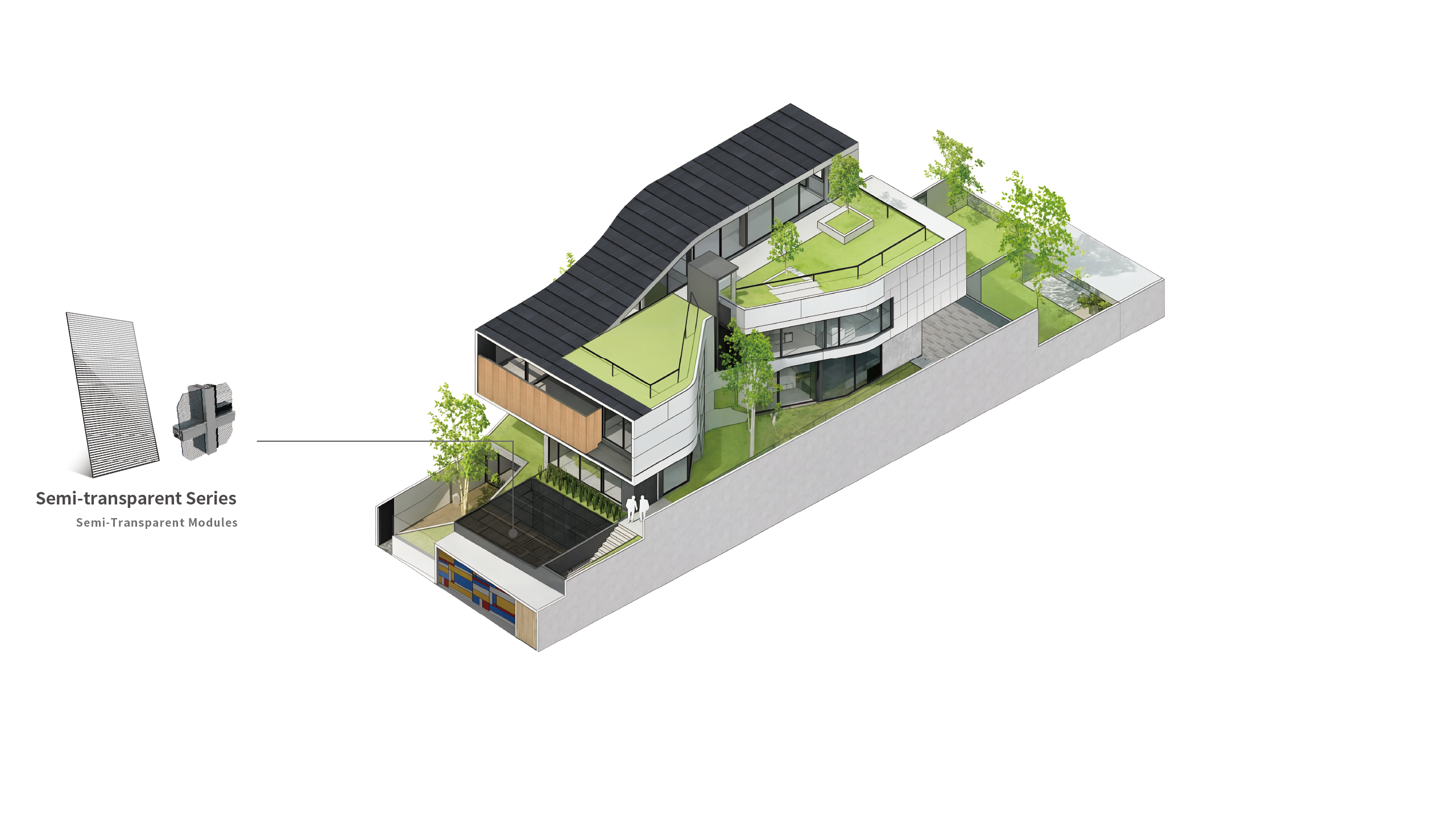

The Semi-Transparent Series offers customisable transparency from 10% to 90%, along with customisable dimensions and structural designs tailored to project requirements. Balancing daylighting with power generation, it allows the façade to present a refined interplay of light and shadow, delivering a seamless integration of performance and design.
Transparency Options
20%
40%
60%
Specifications
Model 1
Dimensions - 1200 x 1800 mm
Encapsulation Structure - 6T + 3.2 PVK + 6T
Thickness - 16.5 mm
Junction Box Size - 150 × 13.3 × 10.7 mm
Weight - 86.5 kg
Rated Power (Pm) - 142 ~ 171 W (50% etching ratio)
Rated Voltage (Vm) - 174 ~ 204 V
Rated Current (Im) - 0.82 ~ 0.84 A (50% etching ratio)
Connector Type - MC4 Connector
Static Load - 5400 Pa
Model 2
Dimensions - 1200 × 2400 mm
Encapsulation Structure - 8T + 3.2 PVK + 8T
Thickness - 20.5 mm
Junction Box Size - 150 × 13.3 × 10.7 mm
Weight - 144 kg
Rated Power (Pm) - 190 ~ 228 W (50% etching ratio)
Rated Voltage (Vm) - 232 ~ 272 V
Rated Current (Im) - 0.82 ~ 0.84 A (50% etching ratio)
Connector Type - MC4 Connector
Static Load - 5400 Pa
Note: Electrical performance varies slightly with different etching ratios.
