Textured Series

Simulated Texture
Anti-Glare & High-Transparency
Green Building Material

Customisable Textured Modules

These textured photovoltaic modules simulate the look and feel of traditional materials—wood, marble, concrete, and aluminum—bringing a modern architectural aesthetic to building façades. The anti-glare, high-transparency surface minimises reflection and ensures uniform daylighting. As a green building material, it delivers eco-friendly performance and contributes to sustainable building design.

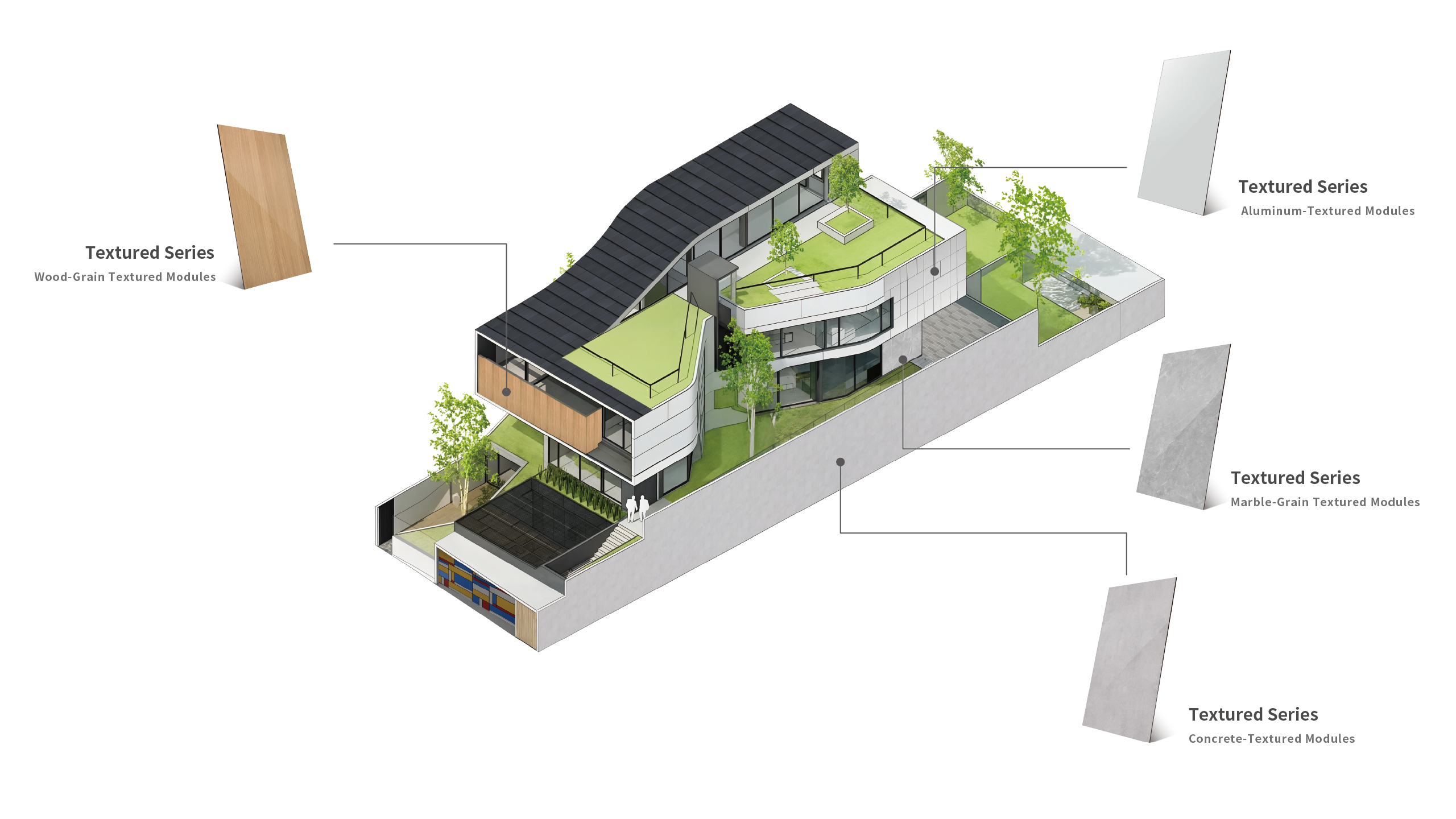

Texture Options
Aluminum
Marble
Concrete
Wood

Specifications

Model 1
Dimensions - 1200 x 1800 mm
Encapsulation Structure - 6T + 3.2 PVK + 6T
Thickness - 16.5 mm
Junction Box Size - 150 × 13.3 × 10.7 mm
Weight - 86.5 kg
Rated Power (Pm) - 172 ~ 206 W
Rated Voltage (Vm) - 174 ~ 204 V
Rated Current (Im) - 0.99 ~ 1.01 A
Connector Type - MC4 Connector
Static Load - 5400 Pa
Model 2
Dimensions - 1200 × 2400 mm
Encapsulation Structure - 8T + 3.2 PVK + 8T
Thickness - 20.5 mm
Junction Box Size - 150 × 13.3 × 10.7 mm
Weight - 144 kg
Rated Power (Pm) - 172 ~ 206 W
Rated Voltage (Vm) - 174 ~ 204 V
Rated Current (Im) - 0.99 ~ 1.01 A
Connector Type - MC4 Connector
Static Load - 5400 Pa
Note: Electrical performance varies slightly with different patterns.
